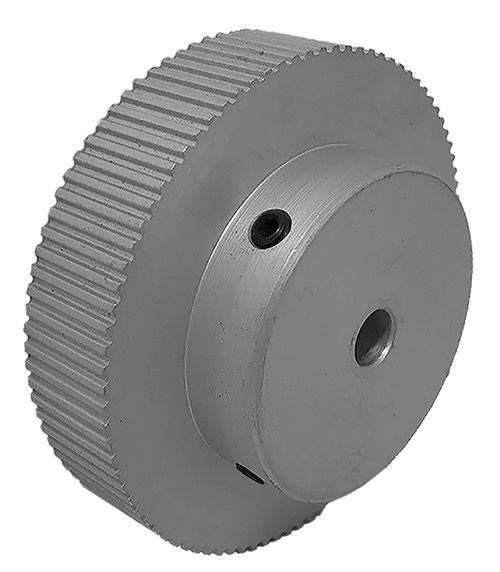

108LT312-6A4, Timing Pulley

108LT312-6A4 - Aluminum Imperial Pitch Pulleys

108LT312-6A4

108LT312-6A4, Timing Pulley, Aluminum, Clear Anodized

Learn more about 108LT312-6A4 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 108LT312-6A4
Teeth 108
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.805
Outside Diameter (in) 2.785
Face Width (in) 0.875
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 71.00
O.D. (mm) 70.70
MOQ 1
Weight (lb) 0.36
Part Number Cross Reference A 6A6-108NF03110, A6A6-108NF03110, 108LT-312 X 1/4 6, 108M312-2A X 5/16, 108LT312-6A4, 108LT312-6A4
Set Screw Quantity 2

Comparable to: A 6A6-108NF03110, A6A6-108NF03110, 108LT-312 X 1/4 6, 108M312-2A X 5/16, 108LT312-6A4, 108LT312-6A4
