108LT187-6A5, Timing Pulley

108LT187-6A5 - Aluminum Imperial Pitch Pulleys

108LT187-6A5

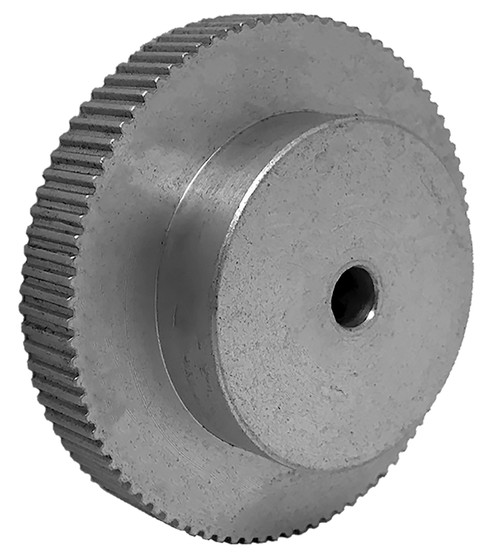

108LT187-6A5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 108LT187-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	108LT187-6A5
Teeth	108
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	2.805
Outside Diameter (in)	2.785
Face Width (in)	0.750
Overall Length (in)	1.500
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	71.00
O.D. (mm)	70.70
MOQ	1
Weight (lb)	0.28
Part Number Cross Reference	A 6A61-08NF01812, A6A61-08NF01812, 108LT-187 X 3/8-6, 108M187-2A X 3/8, 108LT187-6A5, 108LT187-6A5
Set Screw Quantity	2

Comparable to: A 6A61-08NF01812, A6A61-08NF01812, 108LT-187 X 3/8-6, 108M187-2A X 3/8, 108LT187-6A5, 108LT187-6A5
