102MP-PS8A Bar Stock

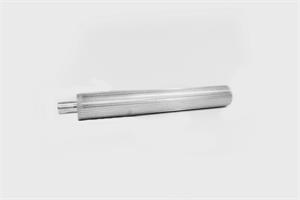

102MP-PS8A, Timing Pulley Stock, Powerhouse Timing, 8 Inch Usable Length, Aluminum
Specifications
| Product Number | 102MP-PS8A |
| Teeth | 102 |
| Tooth Style | MXL |
| Material | Aluminum |
| Pitch Diameter (in) | 2.597 |
| Outside Diameter (in) | 2.577 |
| Overall Length (in) | 8.750 |
| Unit System | Inch |
| Min. Usable Length (in) | 8.000 |
| P.D. (mm) | 66.00 |
| O.D. (mm) | 65.50 |
| Overall Thickness (W) (in) | 0.09 |
| Weight (lb) | 4.22 |
| Part Number Cross Reference | 102MP-PS8A, A 6A15-102MXL08, A6A15-102MXL08, 102MXL-P- |
Documentation
| Download Catalog | 2015_TGW_CATALOG_253.pdf |
| For custom parts click here | custom.html |
