100MP037M6A8 Metric Pulleys

100MP037M6A8, A 6A16M100NF9508

Product Details for 100MP037M6A8

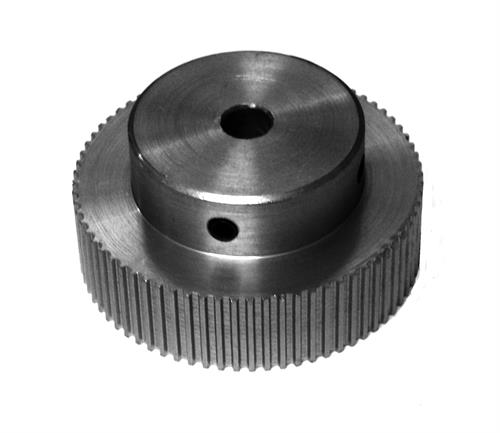

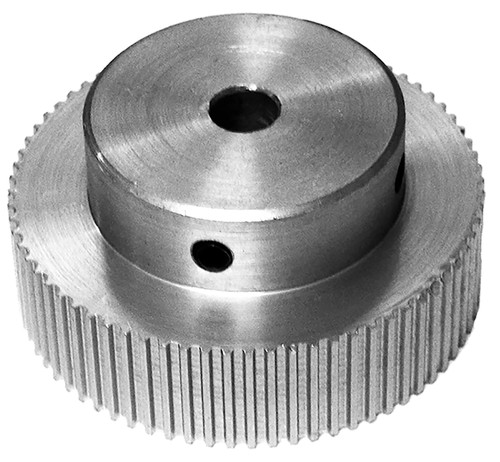

100MP037M6A8, Timing Pulley, Powerhouse Timing, 8 mm Bore, Aluminum

Specifications

Product Number 100MP037M6A8
Teeth 100
Tooth Style MXL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 8.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 12.70
Unit System Metric
P.D. (mm) 64.70
O.D. (mm) 64.20
Overall Length (mm) 22.20
Hub Diameter (mm) 38.10
Weight (lb) 0.30
List Price (1-9 Qty.) (USD) 19.73
Discount Price (10-24 Qty.) (USD) 17.98
Discount Price (25-49 Qty.) (USD) 14.11
Discount Price (50-99 Qty.) (USD) 13.18
Discount Price (100-249 Qty.) (USD) 12.24
Part Number Cross Reference 100MP037M6A8, A 6A16M100NF9508,

Documentation

Download Catalog 2015_BBMAN_CATALOG_11.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 100MP037M6A8_REACH_cert
RoHS Certification 100MP037M6A8_RoHS_cert
