100MP037-6A4 Imperial Pitch Pulleys

100MP037-6A4, A6A16-100NF3710, A 6A16-100NF3710, 100MP-037 5/16  6, 100MXL307-2A X 5/16

Product Details for 100MP037-6A4

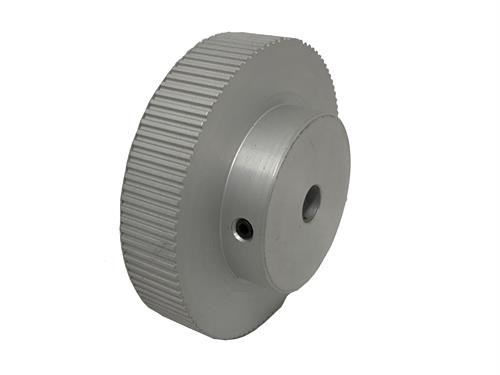

100MP037-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Product Number 100MP037-6A4
Teeth 100
Tooth Style MXL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.526
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Pulley Belt Width (in) 0.500
Unit System Inch
Weight (lb) 0.30
List Price (1-9 Qty.) (USD) 19.73
Discount Price (10-24 Qty.) (USD) 18.33
Discount Price (25-49 Qty.) (USD) 14.11
Discount Price (50-99 Qty.) (USD) 13.18
Discount Price (100-249 Qty.) (USD) 12.24
Part Number Cross Reference 100MP037-6A4, A6A16-100NF3710, A 6A16-100NF3710, 100MP-037 5/16 6, 100MXL307-2A X 5/16

Documentation

Download Catalog 2015_BBMAN_CATALOG_6.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 100MP037-6A4_REACH_cert
RoHS Certification 100MP037-6A4_RoHS_cert
