100MP025-6A4 Imperial Pitch Pulleys

100MP025-6A4, A 6A16-100NF2510, PB100MXL025, 78260295, PT0100A10L04N, TP7A5H4-100

Product Details for 100MP025-6A4

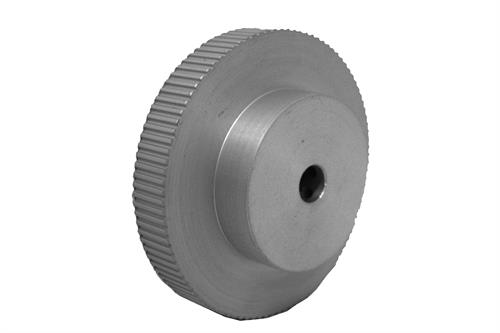

100MP025-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Product Number 100MP025-6A4
Teeth 100
Tooth Style MXL
For Belt Width (in) 0.250
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.526
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Pulley Belt Width (in) 0.375
Unit System Inch
Weight (lb) 0.24
List Price (1-9 Qty.) (CAD) 25.97
Discount Price (10-24 Qty.) (CAD) 24.02
Discount Price (25-49 Qty.) (CAD) 17.53
Discount Price (50-99 Qty.) (CAD) 16.88
Discount Price (100-249 Qty.) (CAD) 15.58
Part Number Cross Reference 100MP025-6A4, A 6A16-100NF2510, PB100MXL025, 78260295, PT0100A10L04N, TP7A5H4-100

Documentation

General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
