100LT312-6A5, Timing Pulley

100LT312-6A5 - Aluminum Imperial Pitch Pulleys

100LT312-6A5

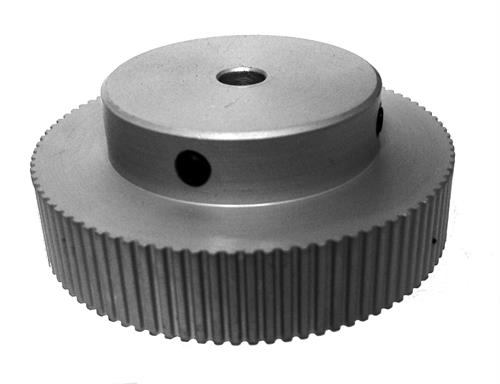

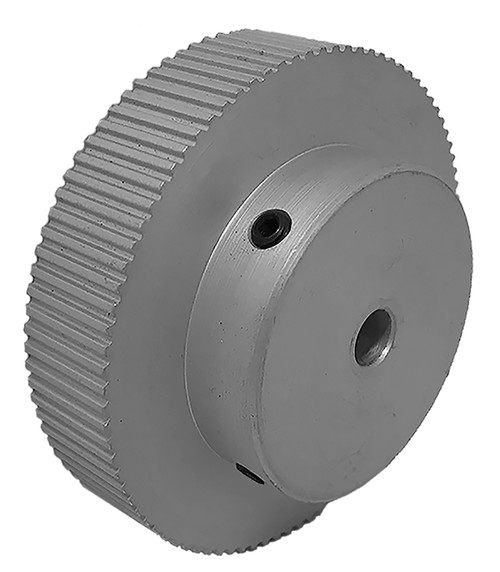

100LT312-6A5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 100LT312-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 100LT312-6A5
Teeth 100
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 2.597
Outside Diameter (in) 2.577
Face Width (in) 0.875
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 66.00
O.D. (mm) 65.50
MOQ 1
Weight (lb) 0.32
Part Number Cross Reference A 6A6-100NF03112, A6A6-100NF03112, 100LT-312 X 3/8 6, 100M312-2A X 3/8, 100LT312-6A5, 100LT312-6A5
Set Screw Quantity 2

Comparable to: A 6A6-100NF03112, A6A6-100NF03112, 100LT-312 X 3/8 6, 100M312-2A X 3/8, 100LT312-6A5, 100LT312-6A5
