100LT312-6A4 Imperial Pitch Pulleys

100LT312-6A4, A 6A61-00NF03110, A6A61-00NF03110, PT100C10L0

Product Details for 100LT312-6A4

Comparable to: 100LT312-6A4, A 6A61-00NF03110, A6A61-00NF03110, PT100C10L0

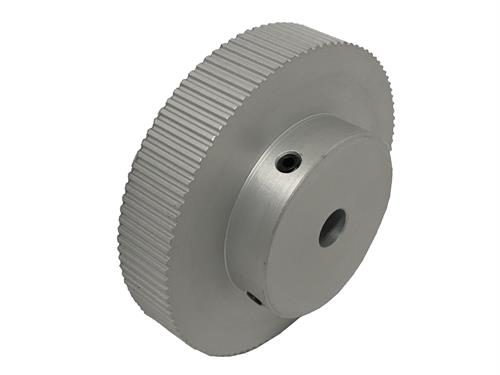

100LT312-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Teeth 100
Tooth Style LT
For Belt Width (in) 0.313
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.600
Outside Diameter (in) 2.586
Face Width (in) 0.875
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.32
Part Number Cross Reference 100LT312-6A4, A 6A61-00NF03110, A6A61-00NF03110, PT100C10L0
