1008x3/4, TL Bushing

1008x3/4, 1008X3/4, TL1008 X 3/4, 20352769

1008x3/4

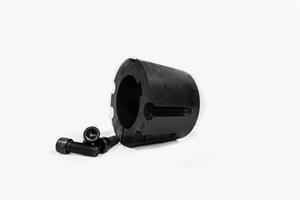

1008x3/4, TL Bushing, C45 Steel, Black Oxide

Learn more about 1008x3/4 TL Bushings and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 1008x3/4
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 0.750
Bore Description 3/4 Inch Finished Bore
Min. Bore (in) 0.5
Unit System Inch
Bushing 1008
A (in) 1.375
B (in) 0.875
C (in) 2.188
D (in) 1.328
Torque Capacity (lb/in) 1,200
Bolt Circle (in) 1.328
MOQ 1
Weight (lb) 0.30
Part Number Cross Reference 1008.3/4, 1008 X 3/4, 1008X3/4, TL1008 X 3/4, 20352769, 1008 X 3/4-KW, TL100834, 1008X3/4, 1008X3/4, 1008X3/4, 1008X3/4, 1008X3/4, 1008x3/4, 117150, 1008x3/4
Set Screw Quantity 2

Comparable to: 1008.3/4, 1008 X 3/4, 1008X3/4, TL1008 X 3/4, 20352769, 1008 X 3/4-KW, TL100834, 1008X3/4, 1008X3/4, 1008X3/4, 1008X3/4, 1008X3/4, 1008x3/4, 117150, 1008x3/4

Documentation

Download Catalog
Keyway Standards and Tolerances
Bushing Installation Guide
For custom parts click here
RoHS Certification
