100-3P15-6A4, Timing Pulley

100-3P15-6A4 - Aluminum Powerhouse® Pulleys

100-3P15-6A4

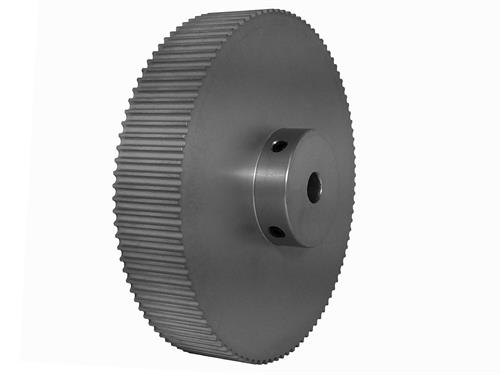

100-3P15-6A4, Timing Pulley, Aluminum, Clear Anodized

Learn more about 100-3P15-6A4 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 100-3P15-6A4
Teeth 100
Tooth Style 3P
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 3.760
Outside Diameter (in) 3.730
Face Width (in) 0.736
Overall Length (in) 1.111
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 96.00
O.D. (mm) 94.70
MOQ 1
Weight (lb) 0.88
Part Number Cross Reference 3MR-100S-15, 100-3P15-6A4, 21071098, 100-3P15-6A4, 100-3P15-6A4
Set Screw Quantity 2
