100-3P09-6A4 Powerhouse™ Pulleys

100-3P09-6A4, A 6A53-100NF0910, A6A53-100NF0910, 3MR-100S-09, 78436081

Product Details for 100-3P09-6A4

Comparable to: 100-3P09-6A4, A 6A53-100NF0910, A6A53-100NF0910, 3MR-100S-09, 78436081

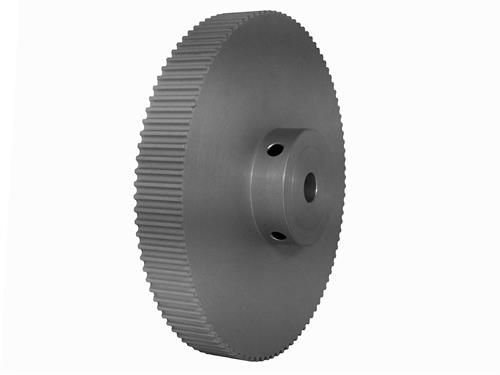

100-3P09-6A4, Timing Pulley, Powerhouse, 5/16 Inch Bore, Aluminum

Specifications

Product Number 100-3P09-6A4
Teeth 100
Tooth Style GT 3mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 3.760
Outside Diameter (in) 3.730
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.250
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Unit System Inch
Max. Bore (in) 1
Weight (lb) 0.50
Part Number Cross Reference 100-3P09-6A4, A 6A53-100NF0910, A6A53-100NF0910, 3MR-100S-09, 78436081

Documentation

Download Catalog 2015_TGW_CATALOG_132.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
