100-2P09-6A4 Powerhouse™ Pulleys

100-2P09-6A4, A 6A51-100NF0910, A6A51-100NF0910, 2MR-100S-09, 78426067

Product Details for 100-2P09-6A4

Comparable to: 100-2P09-6A4, A 6A51-100NF0910, A6A51-100NF0910, 2MR-100S-09, 78426067

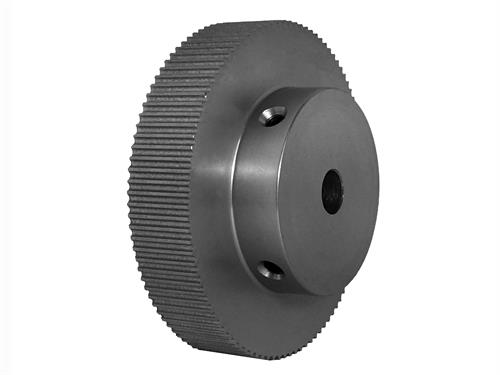

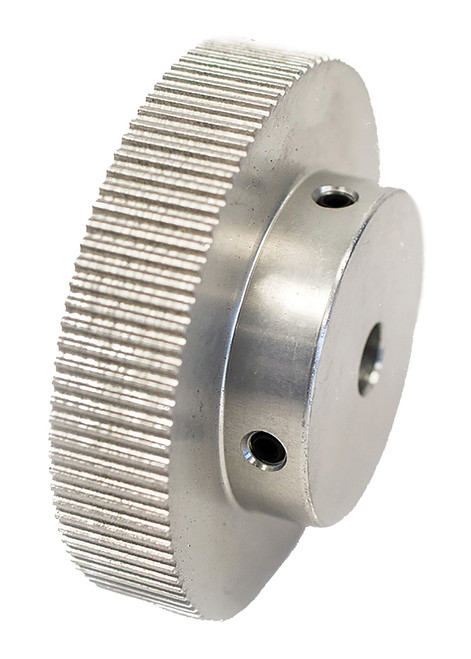

100-2P09-6A4, Timing Pulley, Powerhouse, 5/16 Inch Bore, Aluminum

Specifications

Product Number 100-2P09-6A4
Teeth 100
Tooth Style GT 2mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.506
Outside Diameter (in) 2.486
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Pulley Belt Width (in) 0.500
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.29
Part Number Cross Reference 100-2P09-6A4, A 6A51-100NF0910, A6A51-100NF0910, 2MR-100S-09, 78426067
