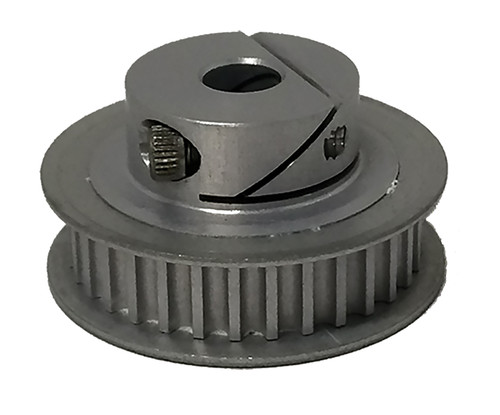

10-3M06MIA3, Timing Pulley

10-3M06MIA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

10-3M06MIA3

10-3M06MIA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10-3M06MIA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 10-3M06MIA3
Teeth 10
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6CI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore Description 3 mm Finished Bore
Pitch Diameter (in) 0.376
Outside Diameter (in) 0.346
Flange Diameter (in) 0.505
Face Width (in) 0.327
Unit System Metric
P.D. (mm) 10.00
O.D. (mm) 8.80
Flange Diameter (mm) 12.80
Overall Length (mm) 14.50
Hub Diameter (mm) 12.20
Number & Screw Size 1 x M2
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 10-3M06MIA3
